Product Description

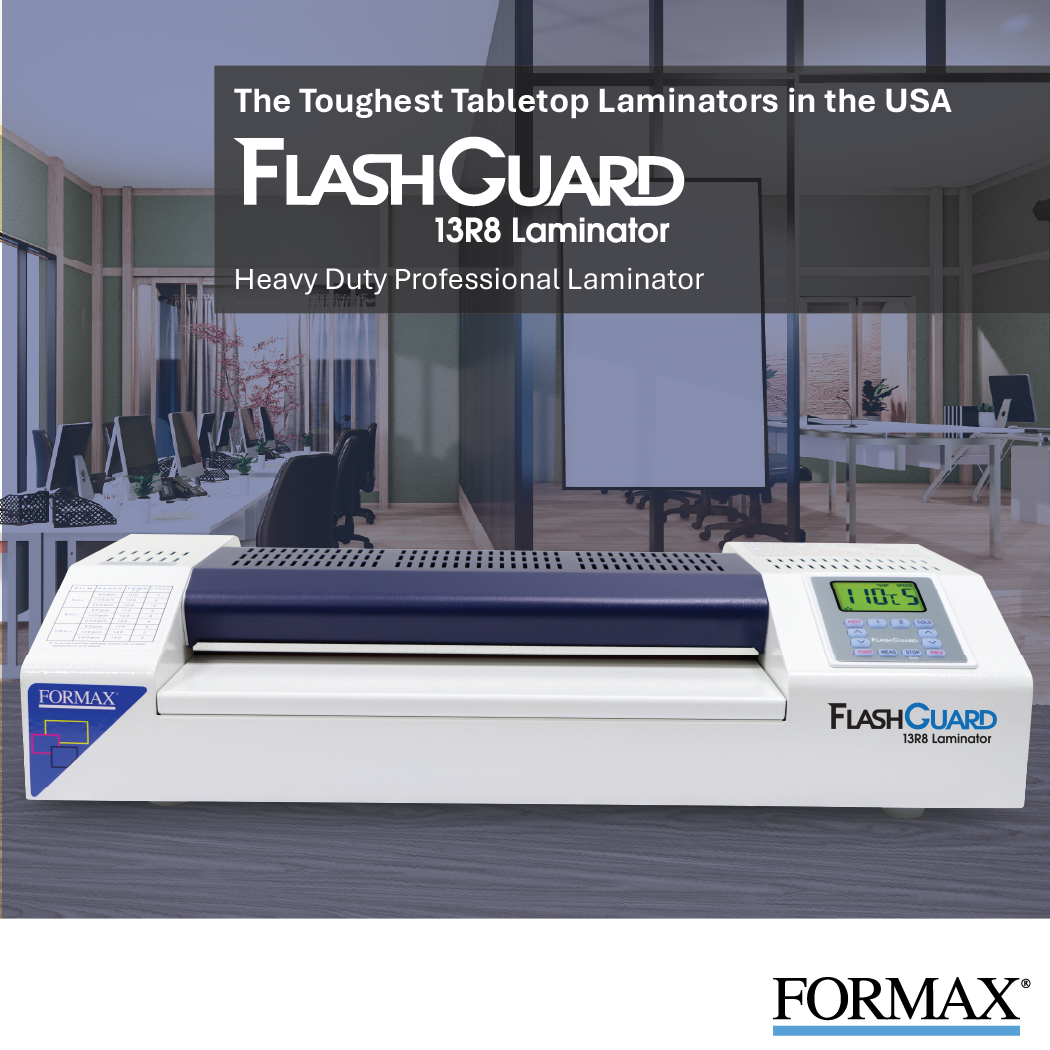

The FlashGuard 13R8 Heavy-Duty Laminator is ideal for print shops, schools, and corporate offices. With a rugged metal housing and user-friendly features, it easily laminates and protects photos, documents, signs, menus, IDs, and more.
The 13R8 features 8 heavy-duty rollers for fast, reliable sealing: 6 heat rollers and 2 cooling rollers. The all-metal housing is durable and stays cool to the touch, thanks to the special internal cooling system. For ideal laminating, the variable temperature control goes up to 320 degrees F (160 degrees C). For temperature sensitive documents, users can choose the cold lamination function, which seals specially-designed pressure sensitive laminating pouches. Each laminator ships with a starter pack of 20 FG-3 premium 3 mil laminating pouches.

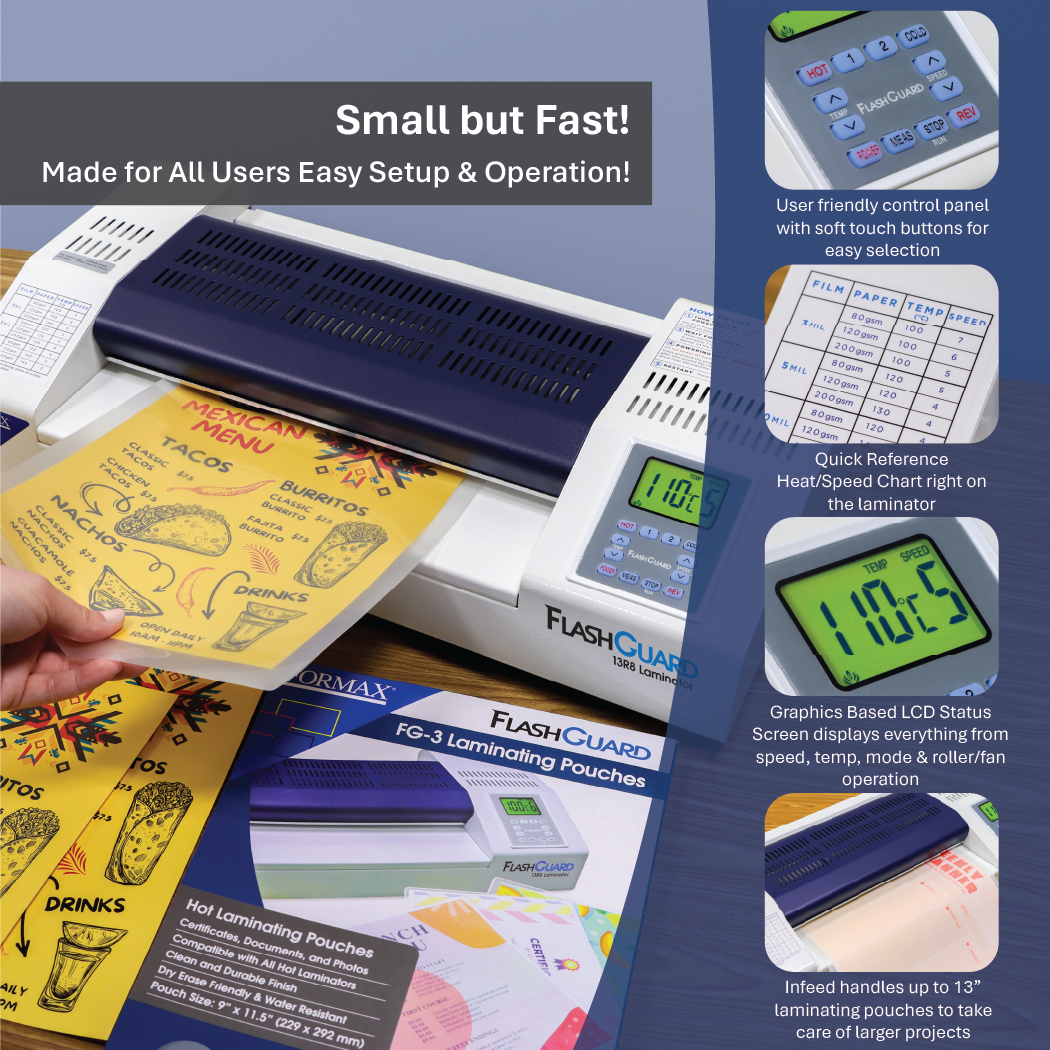

Operation is simple using the intuitive graphics-based LCD control panel: simply set the temperature and speed to match the laminating pouch and document thickness. The control panel features graphic indicators for hot/cold mode, speed, temperature, cooling fan, and roller operation, as well the ability to store up to 2 custom settings for frequently run projects.
*Includes starter pack of 20 premium lamination pouches

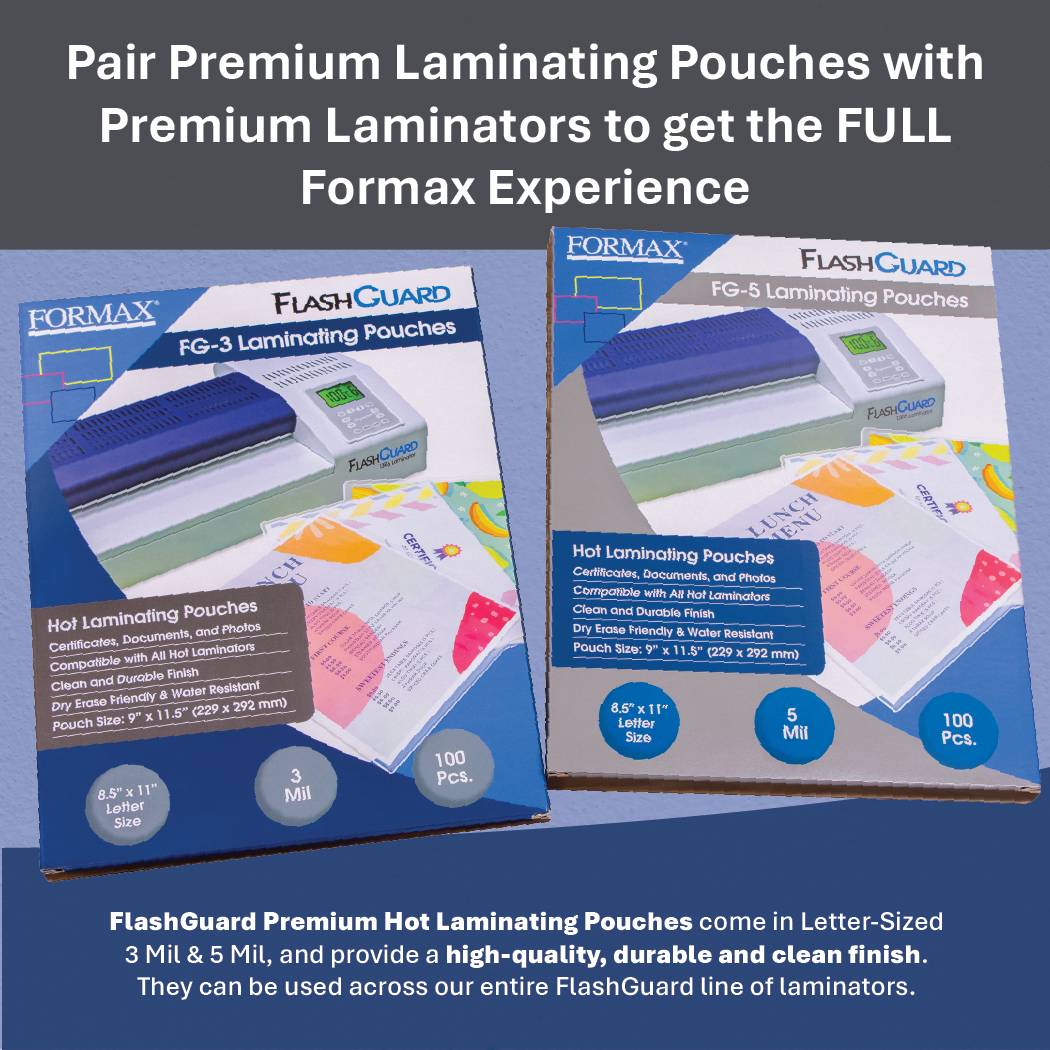

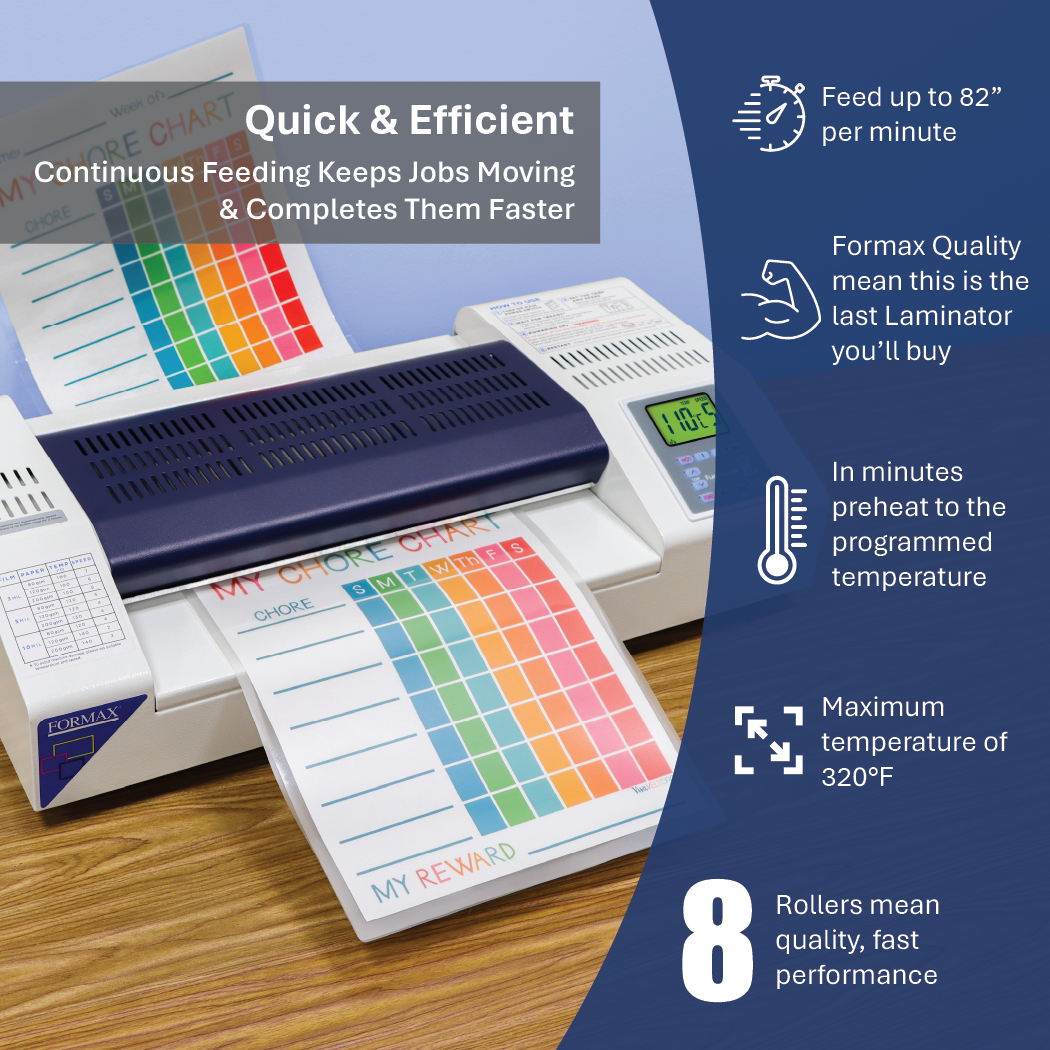

The 13R8 handles pouches up to 13” wide, up to 14 mil, with a maximum laminating thickness of up to 3mm. Formax offers 3 mil and 5 mil laminating pouches for standard letter size 8.5” x 11” projects. With an operating speed of up to 82 inches per minute, users can complete projects in a flash.
A handy speed/temperature chart is printed on the top of the laminator for quick reference. Other useful features include a reverse button to clear jams, and a dedicated cool-down cycle to prevent damage to the heated rollers.
For protecting and preserving documents, photos, menus and more, the FlashGuard 13R8 is a durable, affordable, high-quality solution.

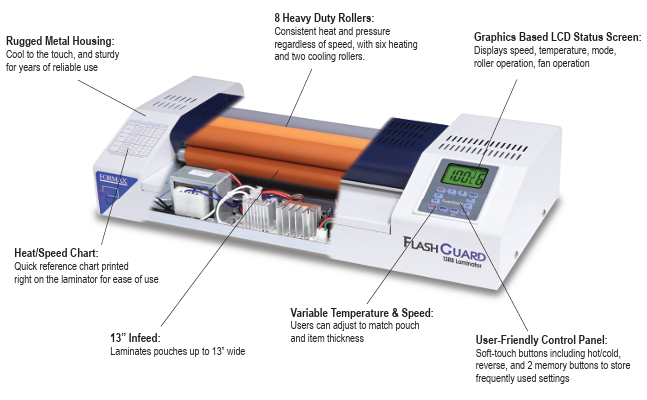

Features:
- Rugged Metal Housing: Cool to the touch and sturdy for years of reliable use

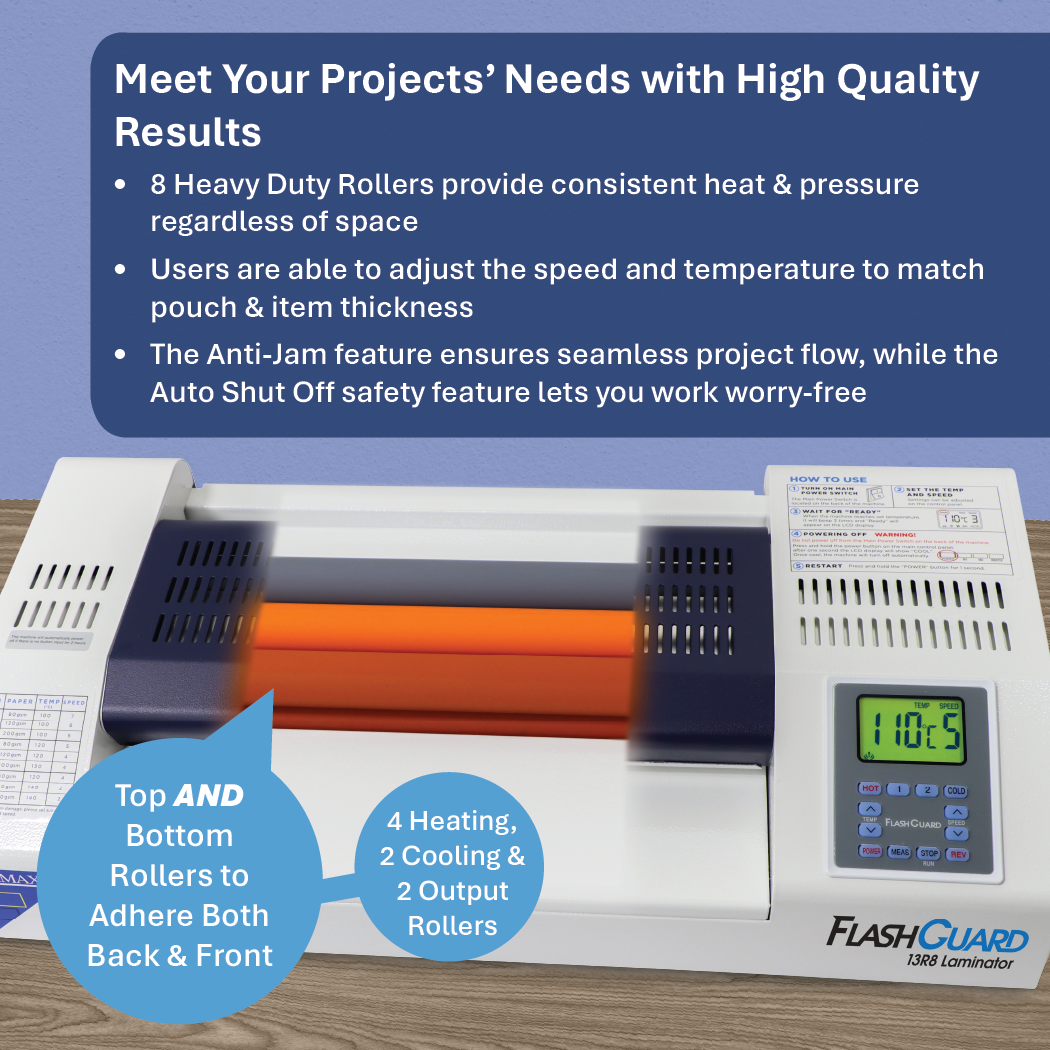

- 8 Heavy Duty Rollers: Consistent heat and pressure regardless of speed, with six heating, two cooling rollers and two output rollers
- Graphics Based LCD Status Screen: Displays speed, temperature, mode, roller operation and fan operation
- Laminating Instructions: Step-by-step instruction guide is always available
- Heat/Speed Chart: Quick reference chart printed right on the laminator for ease of use
- 13″ Infeed: Laminates pouches up to 13″ wide
- Variable Temperature & Speed: Users can adjust to match pouch and item thickness
- User-Friendly Control Panel: Soft-touch buttons including hot/cold, reverse, and 2 memory buttons to store frequently used settings
Specifications
- Weight: 34lbs (15kg)
- Width: 27 in
- Depth: 7 in
- Height: 12 in
- Maximum Paper Width: Up to 13" (330 mm)
- Maximum Speed: Up to 82 inches/minute (2,100mm/minute)
- Maximum Pouch Thickness: Up to 14 mil (350 mic)
- Maximum Laminating Thickness: Up to .118" (3mm)
- Number of Rollers: 8 (6 heating, 2 cooling)
- Temperature: Up to 320 degrees F (160 C)
- Temperature and Speed Control: Yes
- Warranty: 90 Days
- Preheating Time: 6 minutes

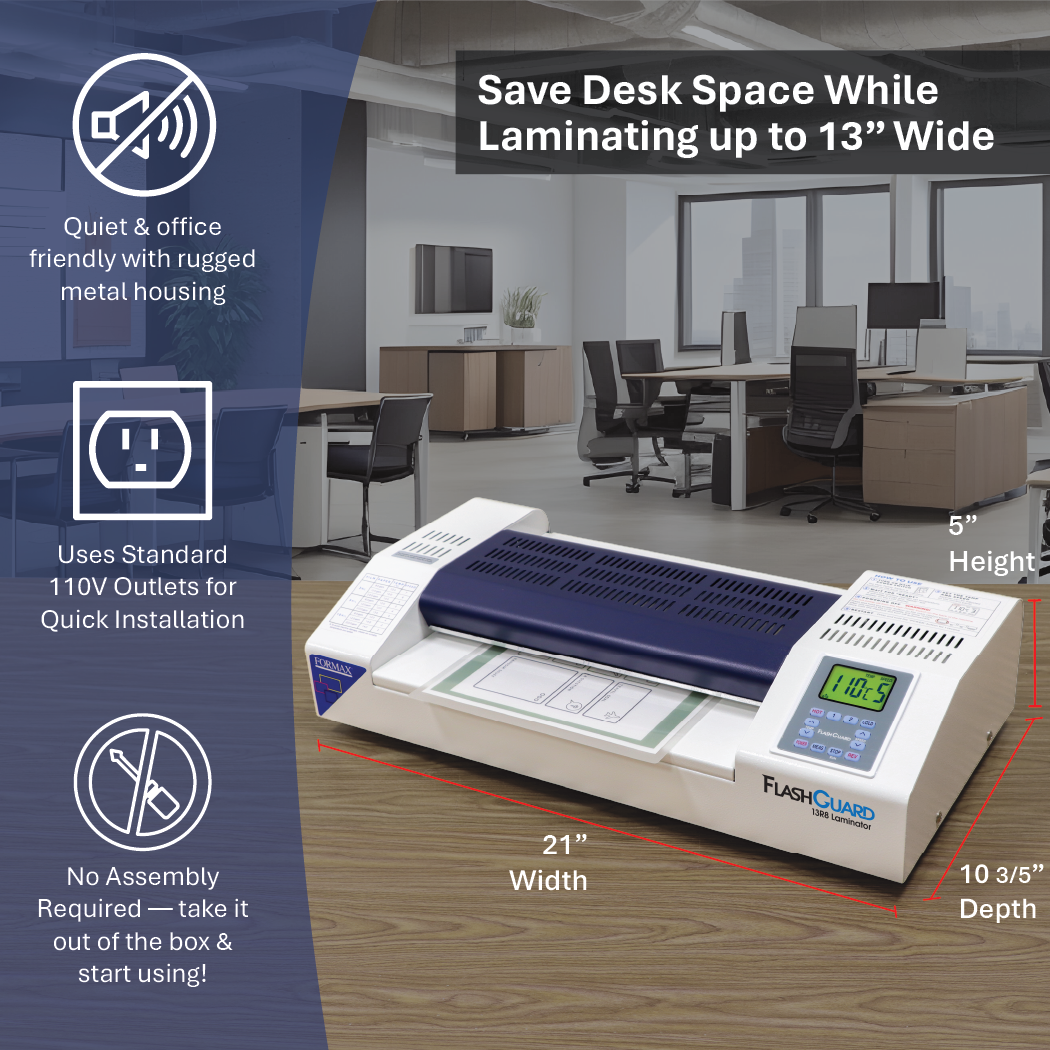

- Dimensions: 27" L x 10.6" D x 5" H (690 x 271 x 112mm)
- Power: 1,500 Watt 110-120V, 50/60Hz, 15A
- PDF: FlashGuard 13R8 Spec Sheet
