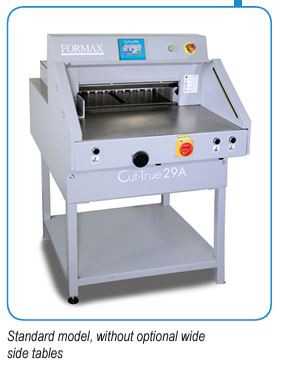

Formax Cut-True 29A Automatic Electric Programmable 20″ Guillotine Paper Cutter New

The Formax Cut-True 29A Electric Guillotine Paper Cutter offers precision cutting for paper stacks up to 20.5” wide. User-friendly, intuitive features include a touchscreen control panel, automatically-adjusting back gauge and the capacity to program up to 100 jobs/100 cuts. An infrared light beam safety curtain provides safety and convenience as it shuts down operation if the light plane is interrupted.

Operation is simple: utilize the touchscreen control panel to program and select job settings, then load a stack of paper, up to 3.15” high. Set the back gauge using the touchscreen. The bright LED Cutting Line allows operators to see exactly where the blade will cut and make fine adjustments. Electronically-controlled two-hand operation engages the hardened steel blade for crisp, accurate cuts, every time.

Cutting accuracy is 0.1mm on paper stacks up to 80mm. The Cut-True 29A also features a special anti-friction surface with optional wide side tables, making it easier for operators to maneuver large paper stock. A false clamp is included to minimize the risk of marking sensitive paper stock or perfect bound books. In addition, the clamp can be removed to decrease the minimum cut length, and is easily stored within the machine.

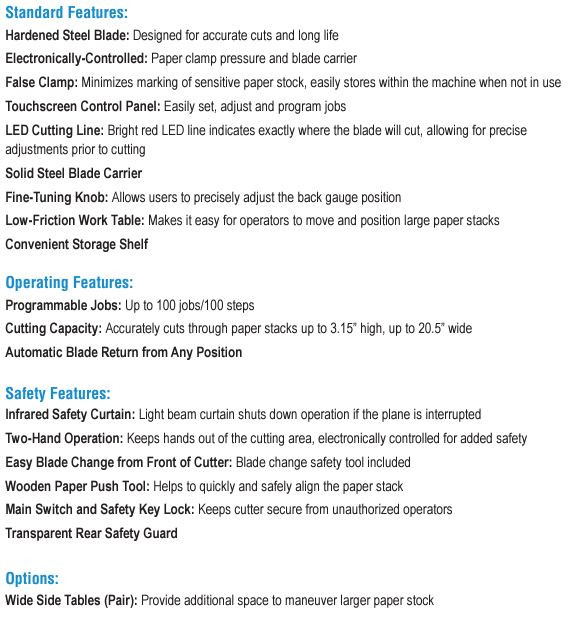

Standard safety features include a lock with key, blade lock, external blade depth adjustment, automatic blade return from any position, easy-to-use blade change safety tool, and a wooden paper push for safe alignment.

The Cut-True 29A is ideal for transforming large sheets into brochures, invitations and more, with crisp, accurate cuts, and is a welcome addition to print shops and in-plant finishing operations.

Specifications:

• Cutting Action: Dual Button Electric
• Maximum Cutting Width: 20.5” (520mm)
• Maximum Paper Stack Height: 3.15” (80mm)
• Programmable Jobs: Up to 100 programs with up to 100 steps each
• Touchscreen Features: Program jobs, alternate between inches/mm, paper eject function, programming via cutting, business card cutting mode
• Length Behind Blade: 20.5” (520mm)
• Length in Front of Blade: 18.25” (464mm)
• Minimum Cut w/False Clamp: 1.6” (40mm)
• Minimum Cut w/o False Clamp: .98″ (25mm)
• Table Size: 30.75″W x 15.75″D (781x400mm)
• Table Size with optional wide side tables: 56″W x 15.75″D (1422x400mm)
• LED Laser Cut Line: Yes
• Clamp Style: Automatic, electronically adjustable
• Back Gauge Adjustment: Fully programmable using touchscreen, accurate to 0.1mm
• Back Gauge Reading: Scale, in both inches and metric
• Blade Change Handles: Included
• Dimensions: 49.25” H x 31” (61″ with side tables) W x 53.25” D (1250 H x 788/1549 W x 1352 D mm)
• Weight: 683 lbs (310kg)
• Safety Certifications: CE approved
• Power Supply: 220V, 60Hz, 20A dedicated line, NEMA 6-20P
