Product Description
The new Cut-True 23S replaces the popular Cut-True 22S with a fresh new look and upgraded features!

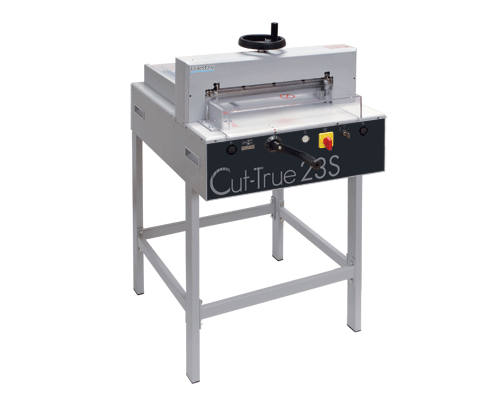

The Formax Cut-True 23S Electric Paper Cutter offers precision cutting for paper stacks up to 16.9” wide and up to 1.75” high. This semi-automatic cutter requires very little effort, with its electronically-controlled two-button operation, and doesn’t sacrifice safety for accuracy. It features an electronically-controlled front safety cover, a safety lock with key, an easy to use blade change safety tool, and a wooden paper push for safe alignment. The Cut-True 23S is ideal for transforming brochures, invitations and more, with crisp, accurate cuts, and is a welcome addition to print shops and in-plant finishing.
UPGRADES
The entire Base and User Controls have been re-engineered with a new design
New and improved FAST HOME back gauge registration
Color Scheme – take a look at our full uniform product line reflecting our products up through our 28” Hydraulic Guillotine Cutters
Re-engineered Complimentary Stand – for ease of setup and stability
Enhanced User Features – increasing safety and making the machine faster to use
ALL AT THE SAME COMPETITIVE PRICE

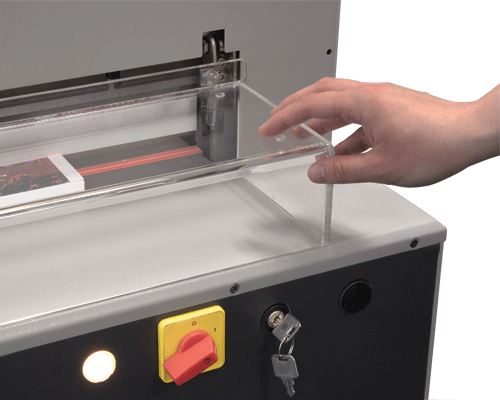

- Electronically Controlled Safety Cover: Immediately stops operation if the cover is lifted

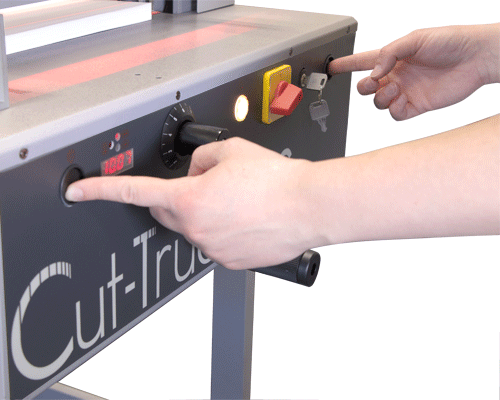

- Two-Hand Operation: Safely engages clamp and blade, keeping hands away from the cutting area

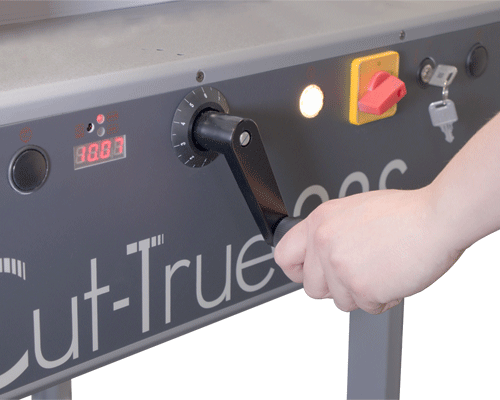

- Manual Back Gauge Adjustment: Fine-tune control for precision cutting
- LED Back Gauge Display: Get a precise cut using standard or metric settings
- Blade Change Safey Tool Kit: Change blades safely and easily, and make adjustments

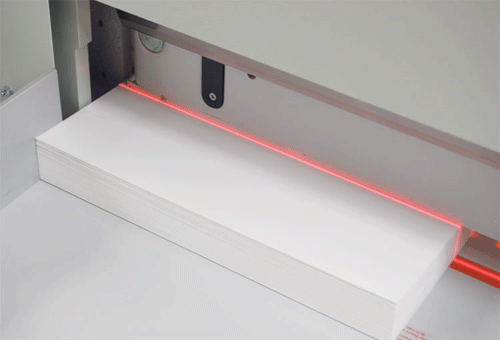

- LED Laser Cutting Line: Shows exactly where the blade will cut, allowing for precise adjustments
Specifications:
- Cuts stacks up to 1.75” high x 16.9” wide
Semi-automatic
LED laser cutting line
LED back gauge display
High-quality hardened steel blade
Main switch and safety lock with key
Electronically-controlled front safety guard
Transparent rear safety guard
Geared clamping system
Automatic blade return
Calibrated scale for fine adjustments
Common paper sizes clearly marked
Adjustable blade guides
Wooden paper push for safe alignment
Blade change safety tool included
All metal stand and tabletop feet included - Supplies
22-10: Replacement Blade
15M-20: Replacement Cutting Sticks, pkg of 8
Specifications
- Weight: 199 lbs
- Width: 24.75"
- Depth: 33"
- Height: 46.75"
- PDF: Cut-True 23S Brochure
- Paper Width: Handles paper sizes up to 16.9" wide
- Maximum Paper Stack Height: 1.75" (45mm)
- Manufacturer Part #: Cut-True 23S
- Cutting Action: Dual-button electric
- Length Behind Blade: 17"
- Length in Front of Blade: 8.25"
- Narrow Cut: 1.89"
- Warranty: 90 Days
- LED Laser Cut Line: Yes
- Clamp Style: Spindle-guided clamping wheel
- Safety Certification: UL Approved
- Table Size: 24.6"W x 27.5"D
- Power Supply: 110V
- Back Gauge Adjustment: Manual Crank
- Back Gauge Reading: Digital readout, in both standard and metric
- Blade Change Safety Tool: Included
